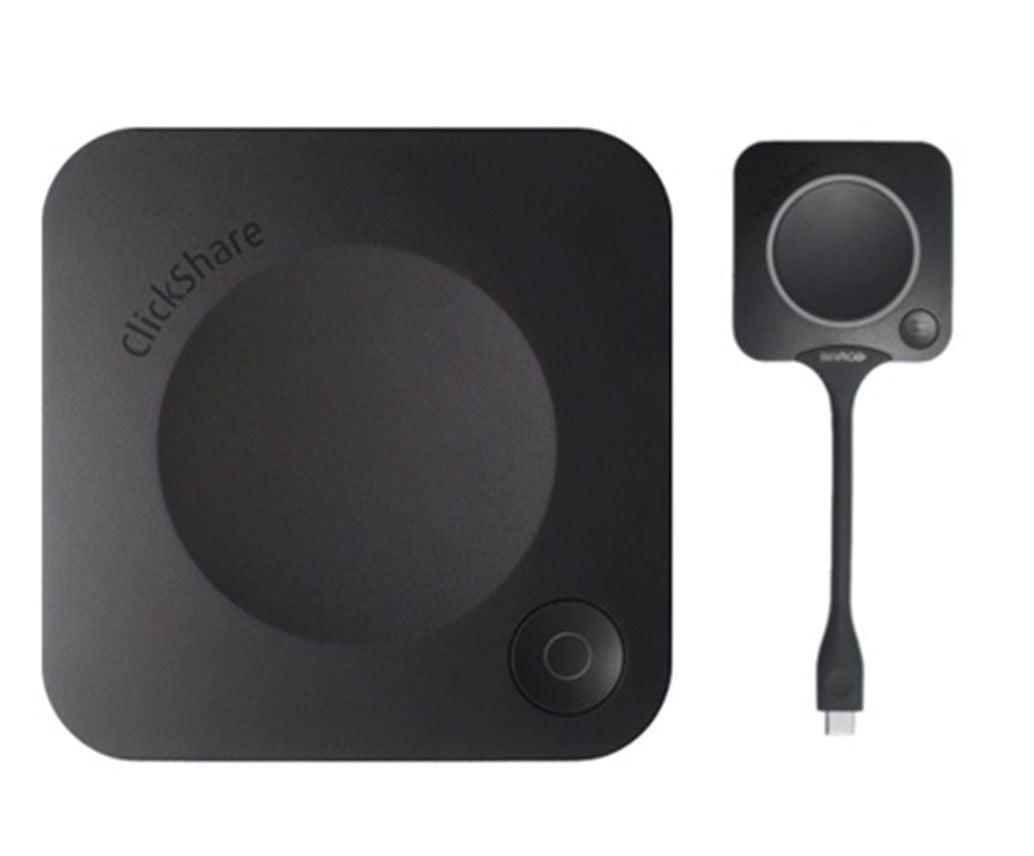

Barco ClickShare CX‑20 Kablosuz Video Konferans ve Sunum Sistemi
SEPETE EKLEBarco ClickShare CX-20 Kablosuz Video Konferans ve Sunum Sistemi
Barco ClickShare CX-20 Kablosuz Video Konferans ve Sunum Sistemi
ClickShare CX-20 Ana Ünite Özellikleri;
Dimensions (HxWxD): 34 mm x 135 mm x 135 mm
Power supply: Standard 110/220 V AC plug or USB-C (only Gen2)
Power consumption: Operational: 5-10W, 24W Max
Weight: 900 gr
Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)
System requirements
For a smooth experience with Microsoft Teams or Zoom
Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mojave latest build
Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest build
Video outputs: 4K UHD (3840*2160) @ 30Hz. HDMI 1.4bor USB-C DisplayPort 1.2 (only Gen2)
Audio output: USB, HDMI
USB: 1 X USB-A, 1 X USB-C
ClickShare Buttons: 1
ClickShare App: Desktop & Mobile
Native protocols: Airplay, Google Cast, Miracast
Maximum number of simultaneous connections (with Buttons and/or App): 32
Noise Level
Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Authentication protocol
WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

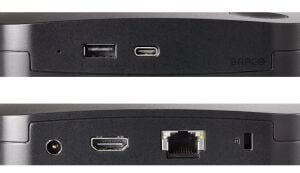

Connections
1x Ethernet LAN 1Gbit
1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range
Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Touch screen support & Interactivity
/
Wireless conferencing
via App or Button
Local view
Local view of the room display only
Network connection
LAN & WiFi
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage via SmartCare
